Monel Tube Fittings

Home > Monel > Monel Tube Fittings

Mirza Tube Fittings is a renowned manufacturer and supplier based in Safat, Kuwait, specializing in high-quality tube fittings for various industrial applications. With a strong focus on precision engineering, we offer many tube fittings, including Monel Tube Fittings, which are known for their exceptional corrosion resistance and durability. We serve industries such as oil and gas, petrochemical, and marine, ensuring reliable performance and adherence to international standards in every product we deliver.

Monel Tube Fittings Price in Safat, Monel Instrumentation Fittings Supplier in Hawalli, Monel Alloy Double Ferrule Fittings Manufacturer in Jahra, Monel Alloy Branch Tees Price in Salmiya, Monel Female Elbow Dealer in Hawalli, Monel Hydraulic Tube Fittings Supplier in Al Ahmadi, Monel Blanking Plug Supplier And Manufacturer in Al Ahmadi, Monel Union Tee In Safat, Kuwait.

Monel tube fittings are composed primarily of nickel (65-70%), copper (28-34%), and small amounts of iron, manganese, carbon, and silicon. They exhibit excellent mechanical properties, including high strength, toughness, and resistance to corrosion and stress corrosion cracking. These fittings maintain their integrity in extreme temperatures and harsh environments, making them suitable for marine, chemical processing, and oil industries. The advantages of Monel tube fittings include exceptional corrosion resistance, high durability, low maintenance requirements, and ease of fabrication, ensuring long-lasting performance in demanding applications.

Monel Tube Fittings Specifications

Monel Tube Fittings specification (ASTM / ASME)	ASTM B366/ ASME SB366
Working Pressure	Up to 6,000psi (based on severity of application)
Two-Ferrule Tube Fittings	Pressure Ratings : Up to 11 000 psig (760 bar)
Medium-Pressure, Gaugeable	Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C)
High-Pressure Monel Tube Fittings	Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Monel 400 Tube fittings
Monel Tube Fittings Special sizes	22mm Monel tube fittings 25mm Monel 400 tube fittings 32mm Monel K500 tube fittings 50mm Monel Ferrule tube fittings
End Connections	Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Types	Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs
Monel Ferrule Tube Fittings Sizes	1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm
Specification	Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564
Brand Name	Monel Tube fittings
Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Threads	NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc.
PTFE Standards	ASTM D1710, ASTM D3294
Applicable Temperature	150-400°C
Monel Tube Fittings Packing Details	As your detail request Normally carton size – 211614CM/312116CM/364550CM Normally wooden box size – 382717CM Normally 1piece/opp, 10-20pcs/carton

Equivalent Grades of Monel Tube Fittings

STANDARD	AFNOR	UNS	BS	WERKSTOFF NR.	GOST	JIS	EN
Monel K500	–	N05500	–	2.4375	–	–	–
Monel 400	NU-30M	N04400	NA 13	2.4360	МНЖМц 28-2,5-1,5	NW 4400	NiCu30Fe

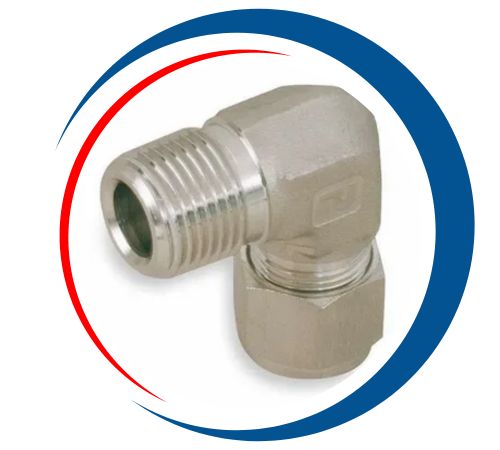

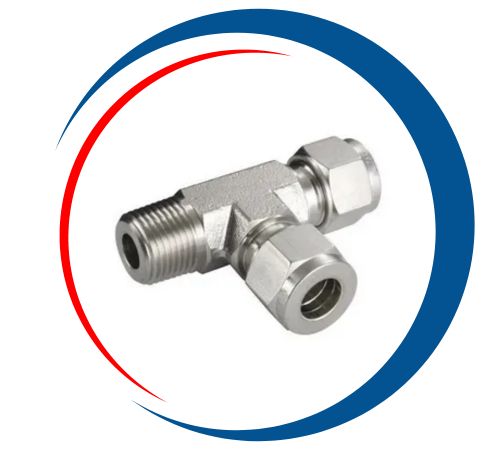

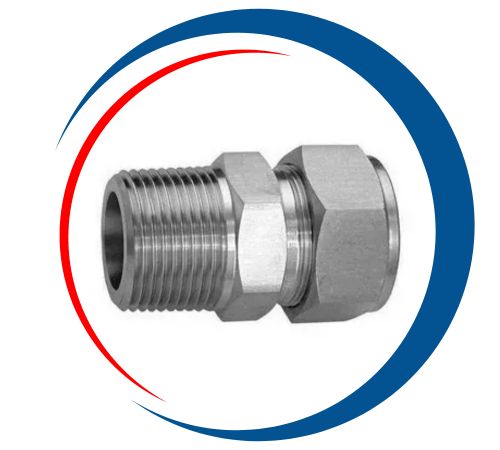

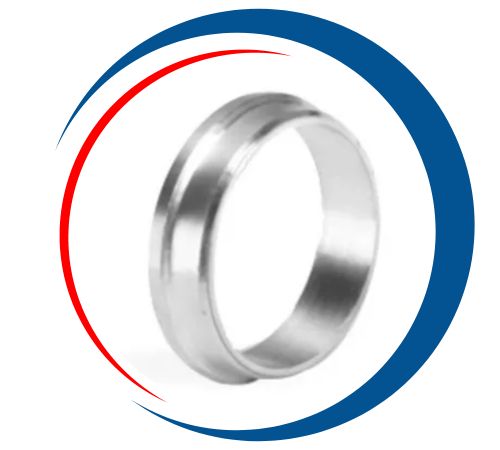

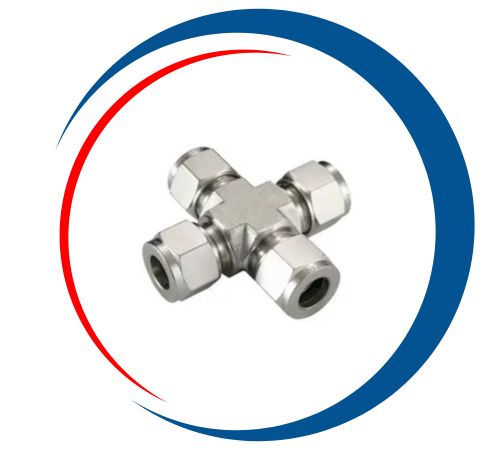

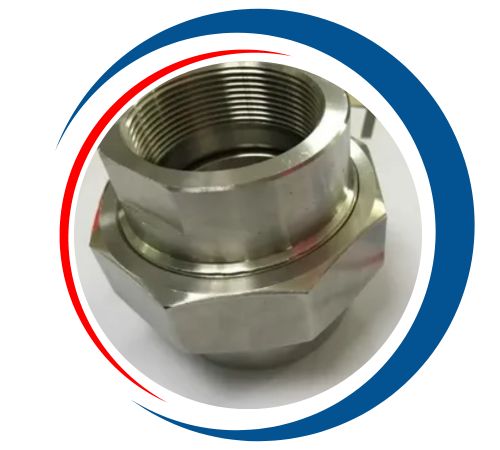

Types of Monel Tube Fittings

Dimension of Monel Tube Fittings

OD	OD Actual	Thread Designation – Nominal Size	Thread per inch
(fraction inch)	(inches)	(inches)	NPT	BSP
5/16	0.3125	1/16	27	28
13/32	0.405	1/8	27	28
35/64	0.540	1/4	18	19
43/64	0.675	3/8	18	19
27/32	0.840	1/2	14	14
1-3/64	1.050	3/4	14	14
1-5/16	1.315	1	11-1/2	11
1-21/32	1.660	1-1/4	11-1/2	11
1-29/32	1.900	1-1/2	11-1/2	11
2-3/8	2.375	2	8	11
2-7/8	2.875	2-1/2	8	11
3-1/2	3.5	3	8	11
4	4.0	3-1/2	8	11
4-1/2	4.5	4	8	11
5-5/8	5.563	5	8	11
6-5/8	6.718	6	8	11

Monel Male Bulkhead Connector Manufacturer in Safat, Monel Hydraulic Fittings Exporter in Hawalli, Monel Single Ferrule Compression Fittings Supplier in Jahra, Monel Flared Tube Fittings Supplier in Salmiya, Monel Union Cross In Jahra, Monel Instrumentation Fittings In Salmiya, Monel Bulkhead Union Price List in Al Ahmadi, Monel Ferrule Tube Fittings Manufacturer in Safat, Monel Alloy Compression Tube Fittings Exporter in Hawalli, Kuwait.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Tube Fittings in Safat, Kuwait

At Mirza Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Monel Tube Fittings in Safat, Kuwait. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Kuwait, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Monel Tube Fittings Uses

Monel tube fittings are widely used in various industries due to their exceptional corrosion resistance and high strength. Common applications include marine environments, chemical processing, and oil and gas industries, where they are essential for transporting aggressive fluids. Their durability makes them ideal for high-temperature applications and extreme environments. Monel fittings are also used in heat exchangers, valves, and piping systems, ensuring reliability and longevity. Additionally, their resistance to pitting and stress corrosion cracking enhances their performance in harsh conditions, making them a preferred choice for critical applications.
